- Šifra:
- INSDSK-UT233
- Karakteristike:
- Merenje AC struje , napona , snage i učestanosti
- Tip:

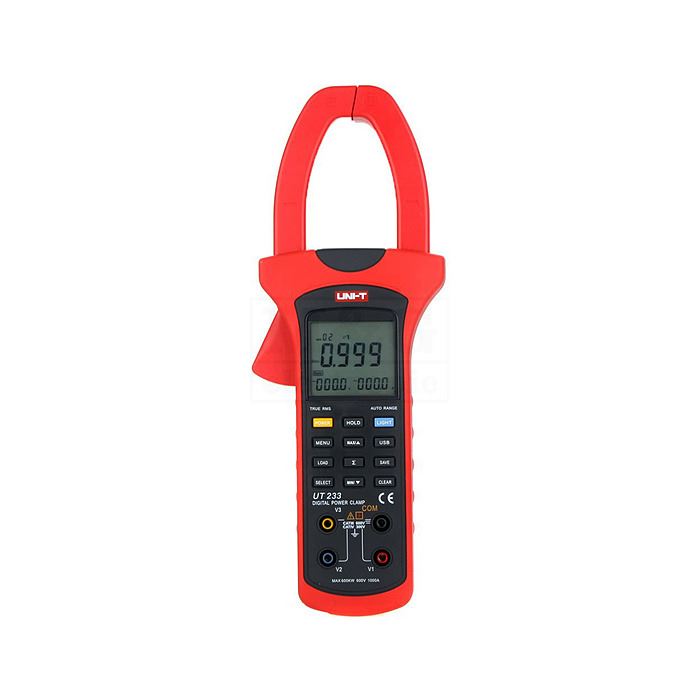

- DIGITALNA AMPER KLEŠTA
- Proizvođači:
-
UNI-T
- Šifra proizvođača:
- UT233
ROHS
• ACV: 15V/100V/300V/600V (1.2%+5)
• ACA: 40A/100A/400A/1000A (2%+5)
• Active Power: 0.01kW-600kW (3%+5)
• Apparent Power: 0.01kVA-600kVA (3%+5)
• Reactive Power: 0.01kVAr-600kVAr (4%+5)
• Power Factor: 0.3~1(Capacitive or Inductive ) (0.02+2)
• Phase Angle: 0°C~360°C 1°
• Frekvencija: 20Hz-500Hz
• Active Energy: 1~9999 kWh (3%+2)
• Auto Ranging, Single-phase 2-wire, 3-phase 3-wire, 3-phase 4-wire,
Phase Rotation Test, True RMS, Calibration Feature, Data Logging,
Max/Min Mode, Data Hold, USB, Display Backlight, Full Icon Display,
Data Recall, Sleep Mode, Low Battery Display
• Max Display: 9999
• Napajanje: 1.5V x 4 kom.
• Veličina LCD: 46x42 mm
• Težina: 601g
• Dimenzije: 303x112x39 mm
